Structural Alterations
Fire Escape Installation, Shelley

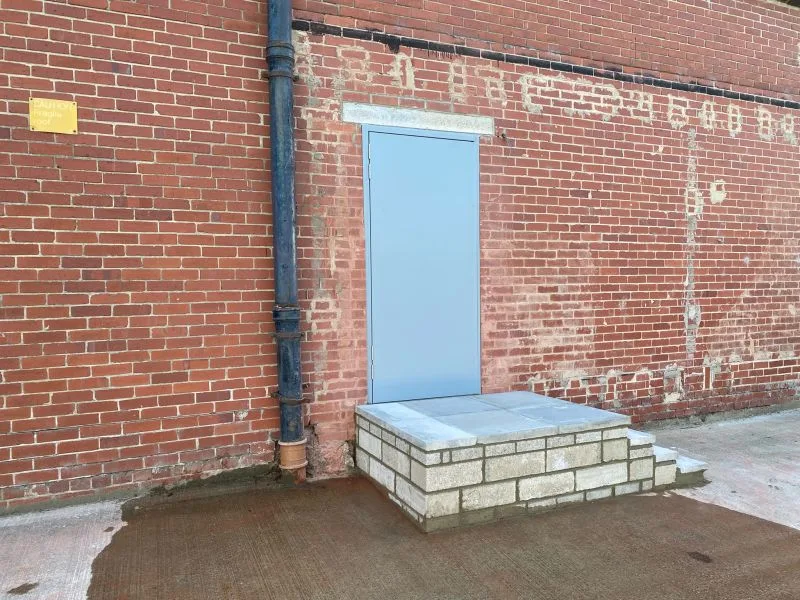

A new fire exit formed through an existing masonry wall, with a structural lintel, a steel fire door, blockwork steps and a galvanised handrail.
- Location
- Shelley, Huddersfield
- Sector
- Industrial & Logistics
- Completed
- 2026
The brief.
Delivered asStructural Opening, Fire Exit Door, Steps & Handrail

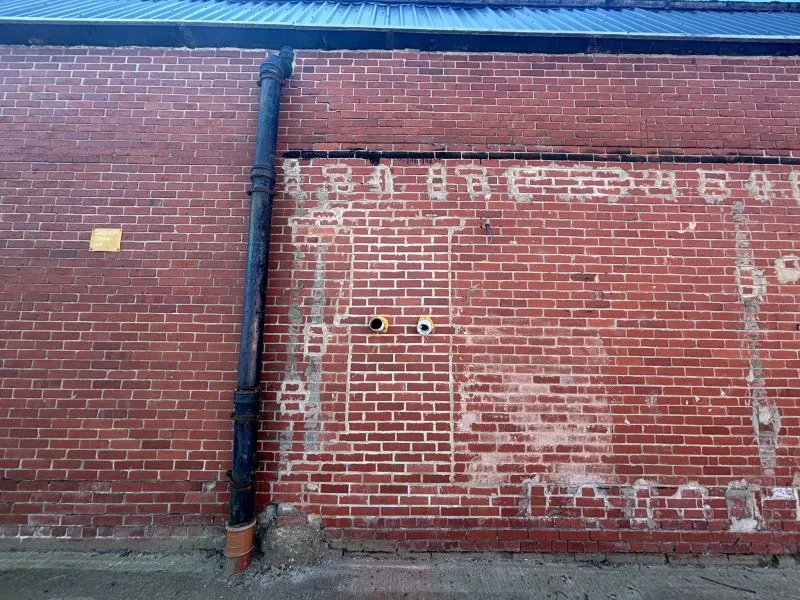

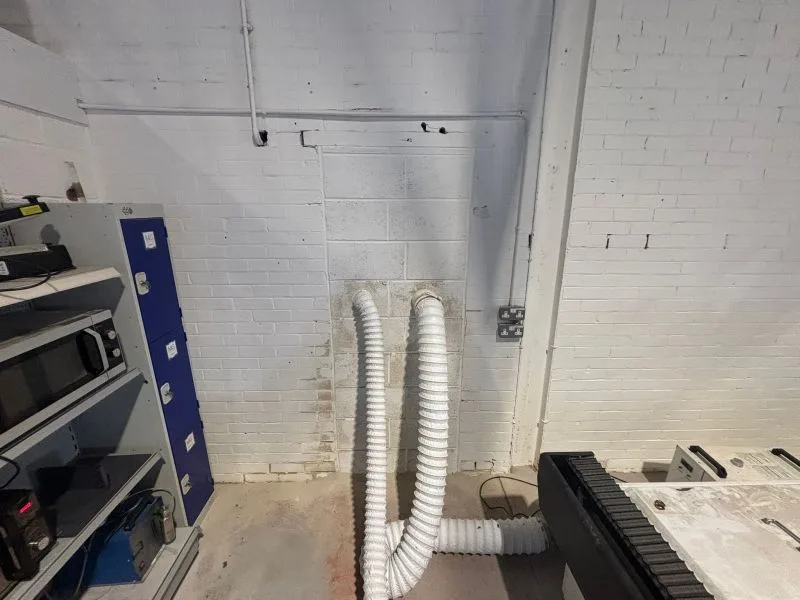

The building needed a new fire exit where there had only ever been solid wall. We formed a new structural opening through the existing masonry, took the spoil off site, and supplied and installed a heavy duty structural lintel above the opening.

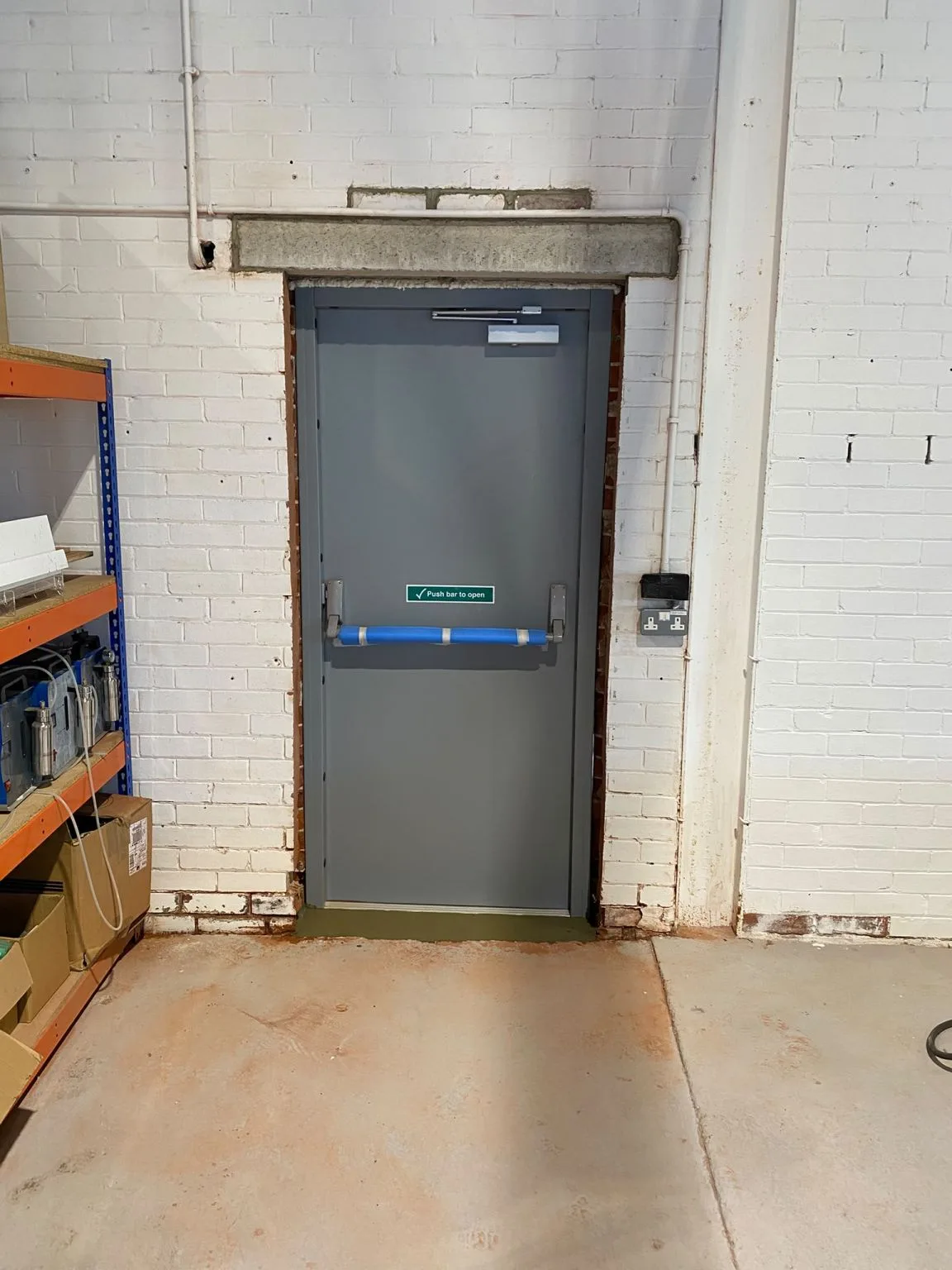

Our sister company Fox Industrial Doors supplied and installed the new steel fire exit door. Because the threshold sits above the yard, we built durable blockwork steps with paved treads down to ground level and fitted a robust galvanised tube handrail, then made good the brickwork around the opening inside and out so the secure steel door sits cleanly in the wall.
Scope of works.
Every trade below was delivered by us or by a company in the group, under one contract and one point of contact.
- 01 New structural opening formed through existing masonry walls
- 02 Arisings removed and disposed of off site
- 03 Heavy duty structural lintel supplied and installed
- 04 New steel fire exit door supplied and installed by sister company Fox Industrial Doors

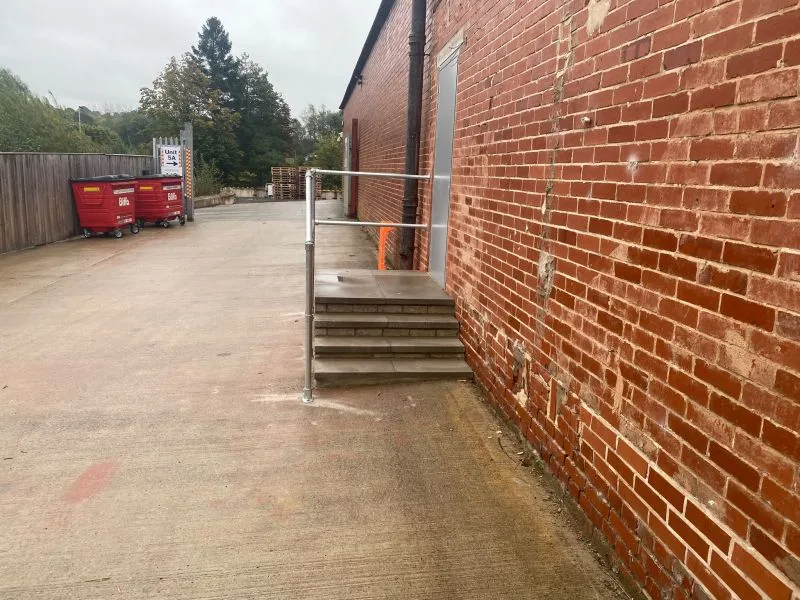

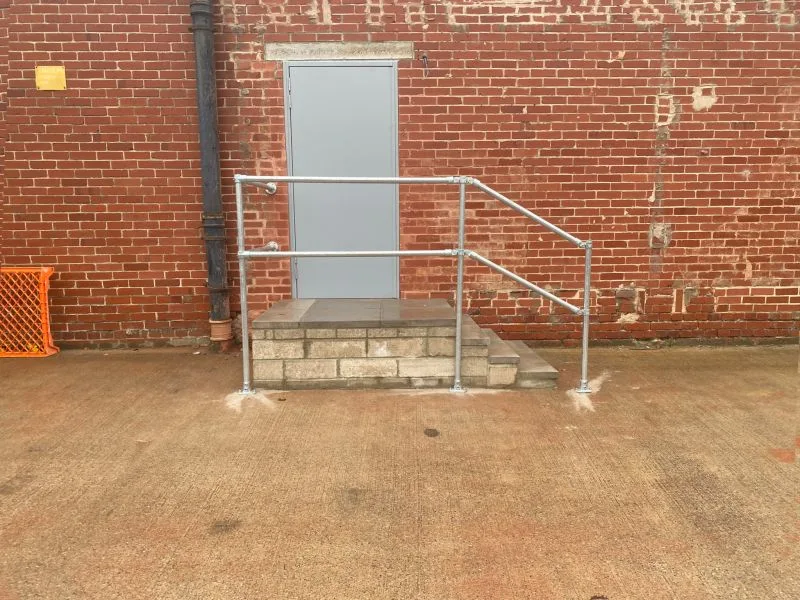

- 05 Blockwork steps with paved treads from the exit threshold to ground level
- 06 Galvanised tube handrail installed
- 07 Interior and exterior brickwork made good around the opening
Completed
5What this project proves.
