External Envelope
Commercial Unit Recladding, Kettlestring Lane, York
A stained, rusting elevation stripped back and re-clad with new insulation, turning a unit that would not let into one that shows well before anybody gets through the door.
- Location
- Kettlestring Lane, York
- Size
- 1,600 sq ft
- Sector
- Industrial & Logistics
- Completed
- July 2018
The brief.
Delivered asRecladding, Insulation, Rainwater Goods
The landlord's problem was simple and expensive: the unit was not letting. Prospective tenants were arriving at rust-streaked cladding, failing flashings and mismatched patch repairs, and forming a view of the building long before they reached the front door.
We removed the cladding and flashings from two side elevations and the front facade, took out the old insulation sandwiched between the sheets, and installed new Rockwool insulation and new cladding throughout. Windows and door shutters were carefully removed and set aside for reinstatement, cladding was formed around every existing opening, and colour-coordinated flat plates were fitted between the windows to the front.
New trim line powder-coated guttering finished the front elevation. A colour chart was provided to the client at the start, so the scheme that went up was theirs rather than ours.
Scope of works.
Every trade below was delivered by us or by a company in the group, under one contract and one point of contact.
- 01 Windows and door shutters carefully removed and set aside
- 02 Existing cladding and flashings removed from two elevations and the front facade
- 03 Redundant sandwiched insulation removed and disposed of
- 04 New Rockwool insulation installed throughout
- 05 New cladding installed to two side elevations and front facade
- 06 Cladding formed around all existing window and door openings
- 07 Flashing trims and drip trays installed as applicable
- 08 Colour-coordinated flat plates between front windows
- 09 New trim line powder-coated guttering to the front elevation
The difference.
Same building, same angle. Click any photograph to open it full size.

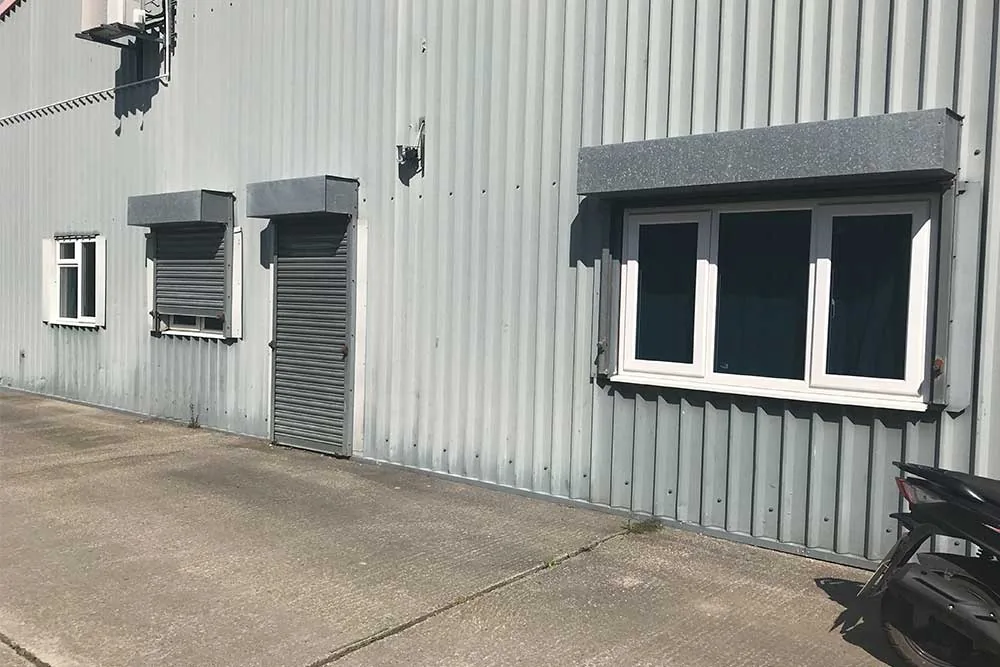

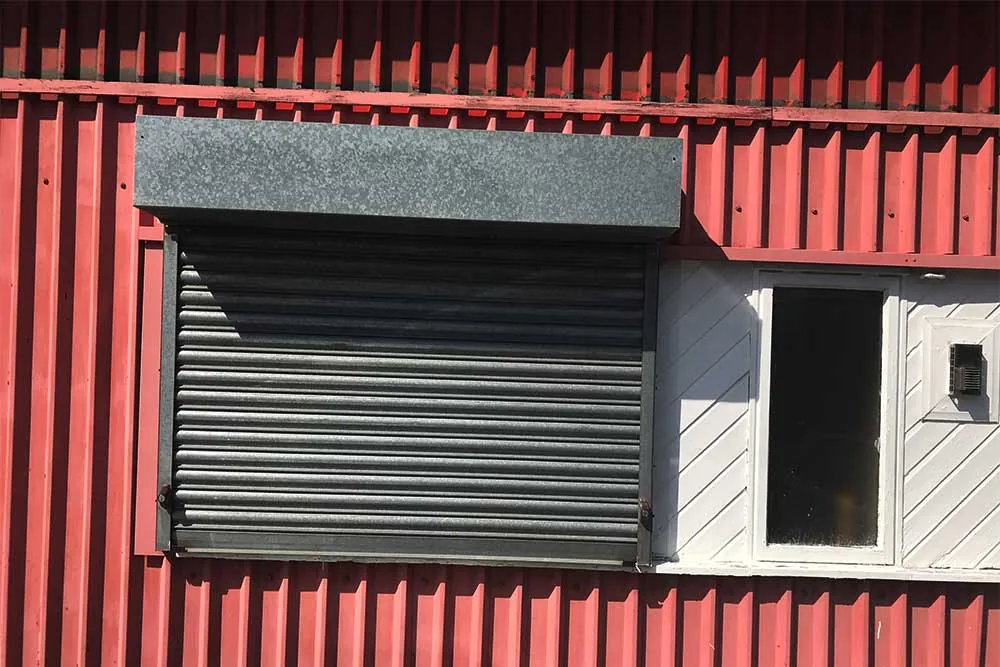

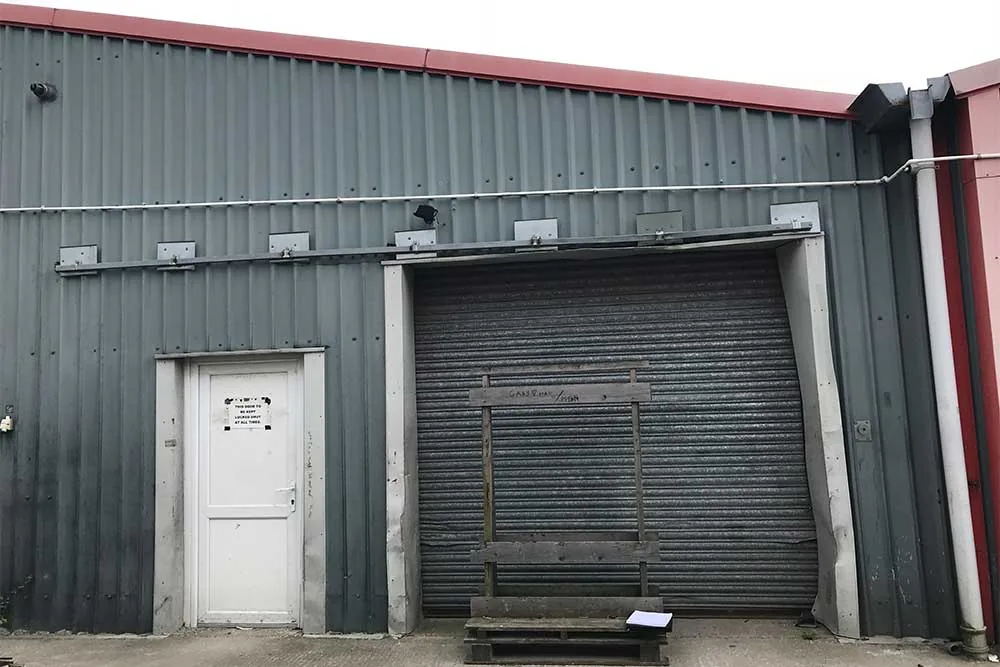

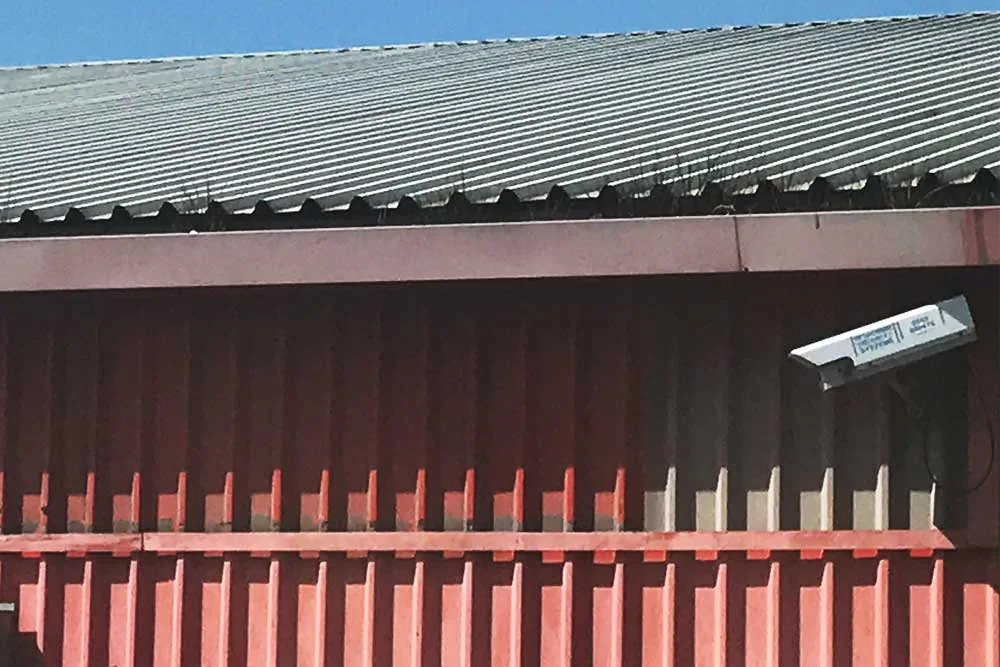

Before

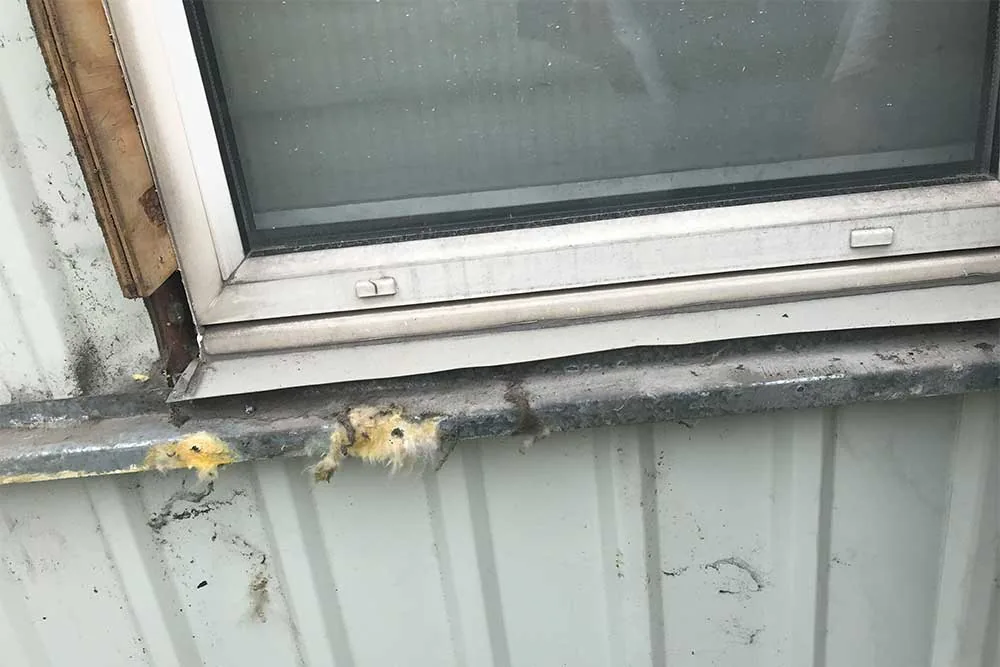

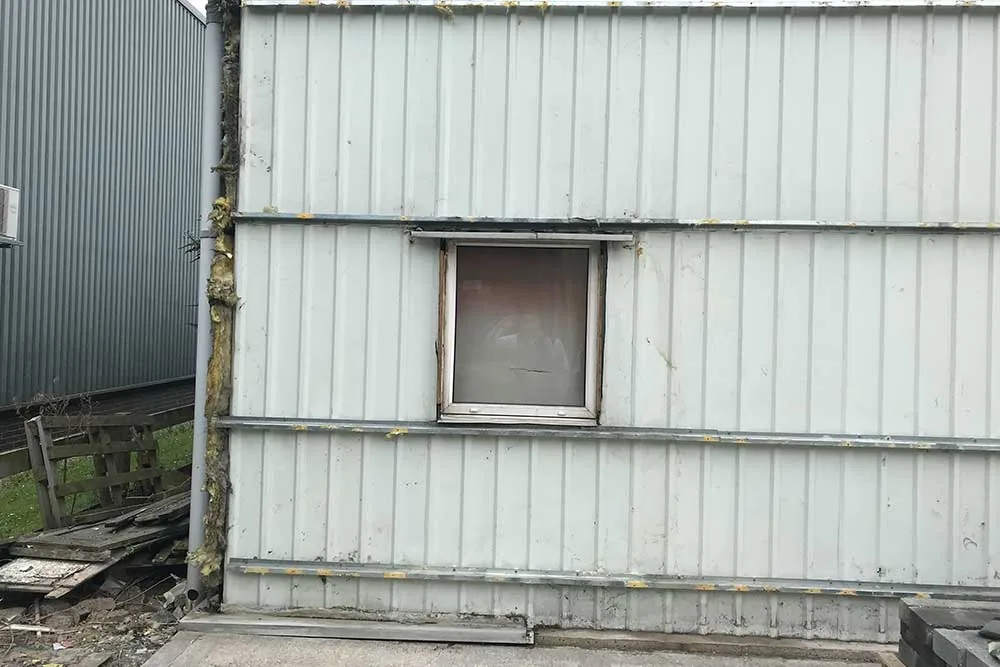

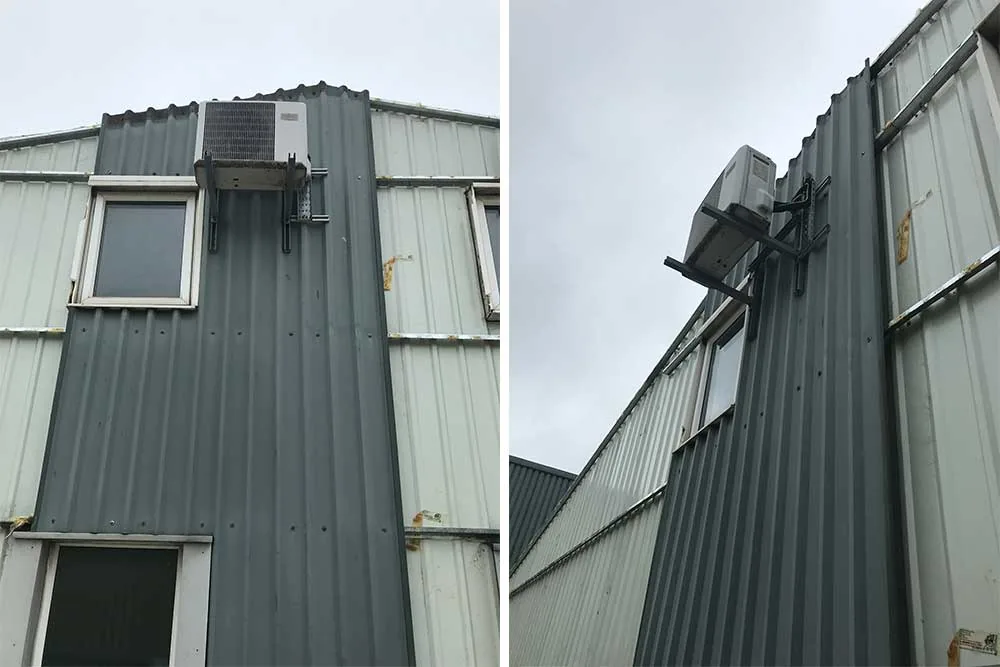

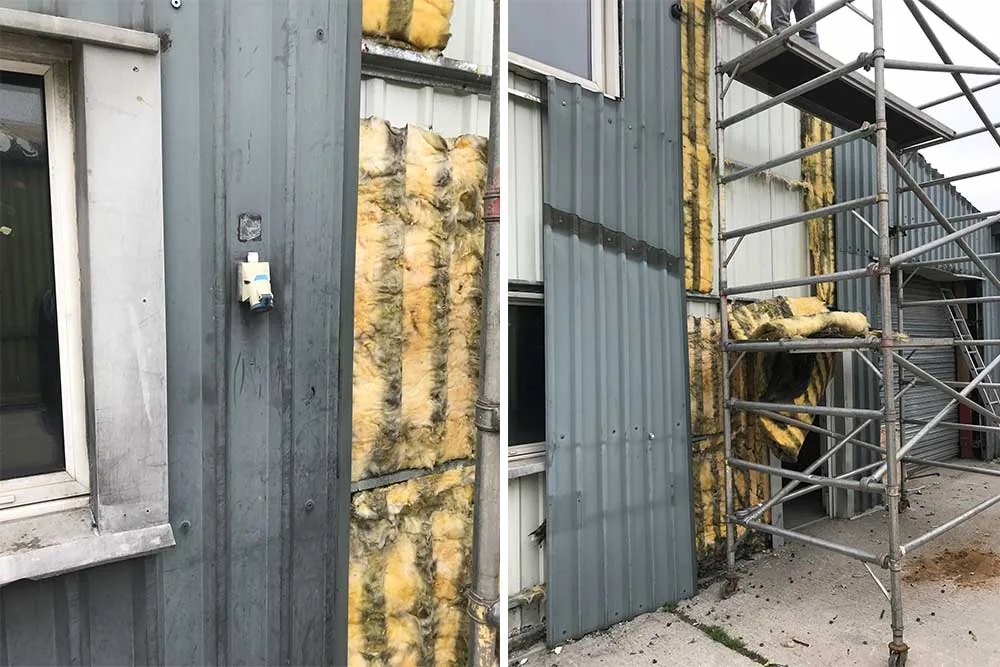

4In progress

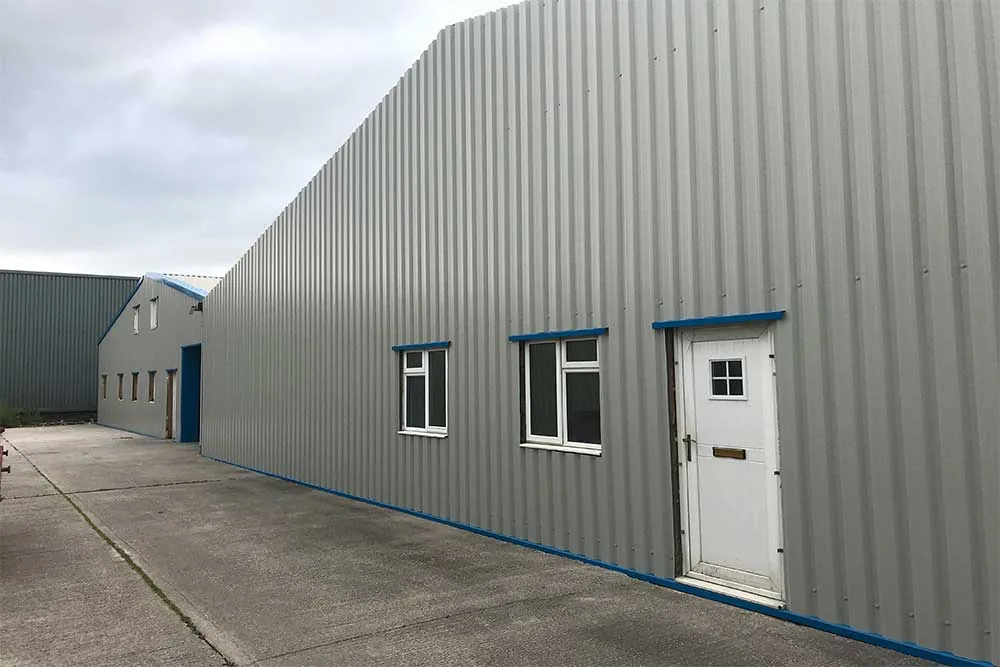

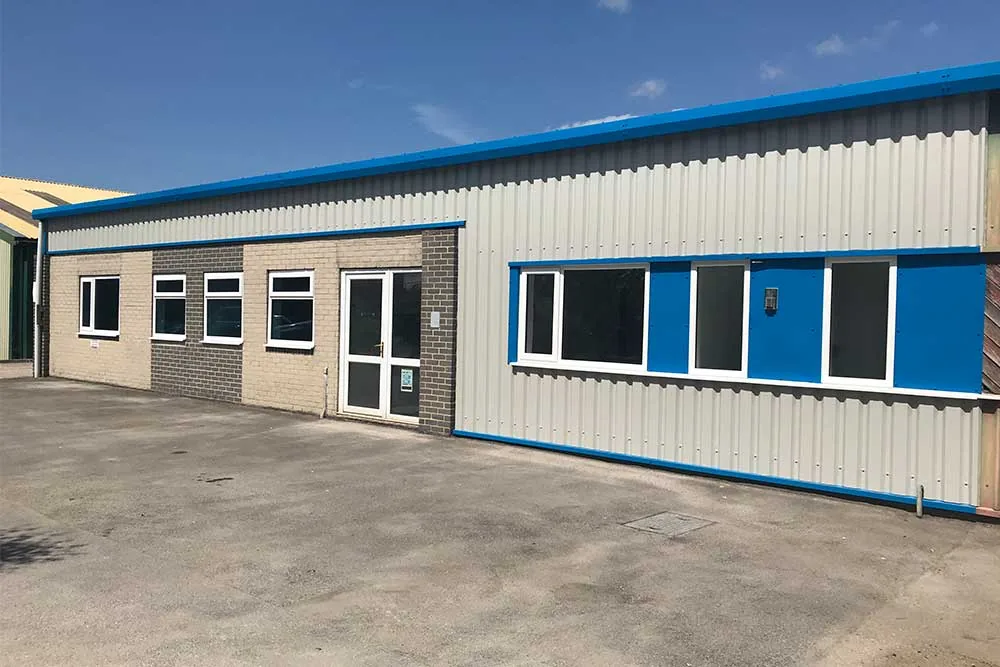

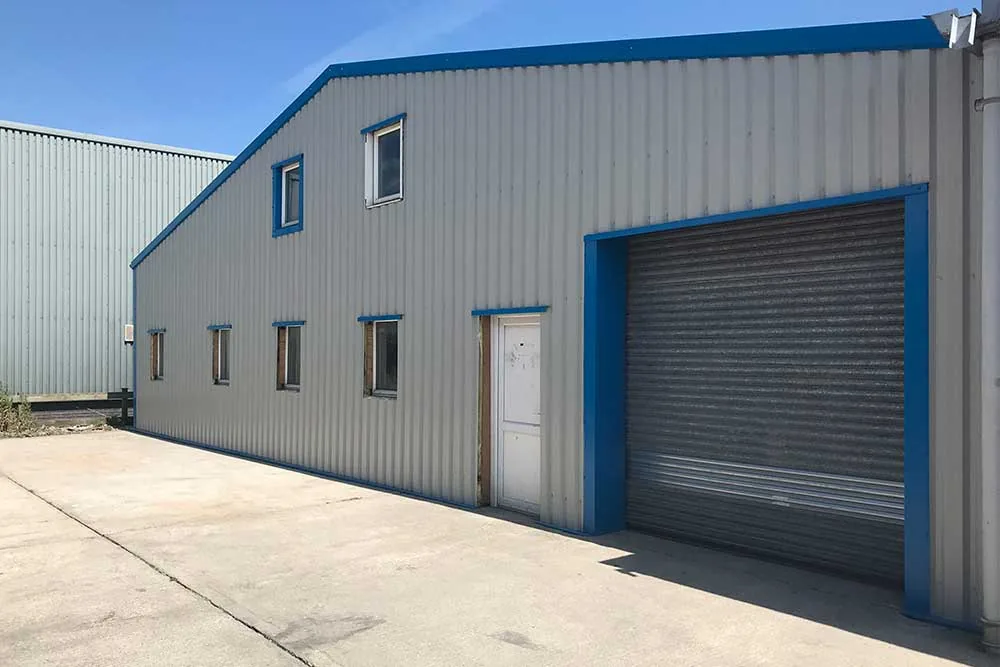

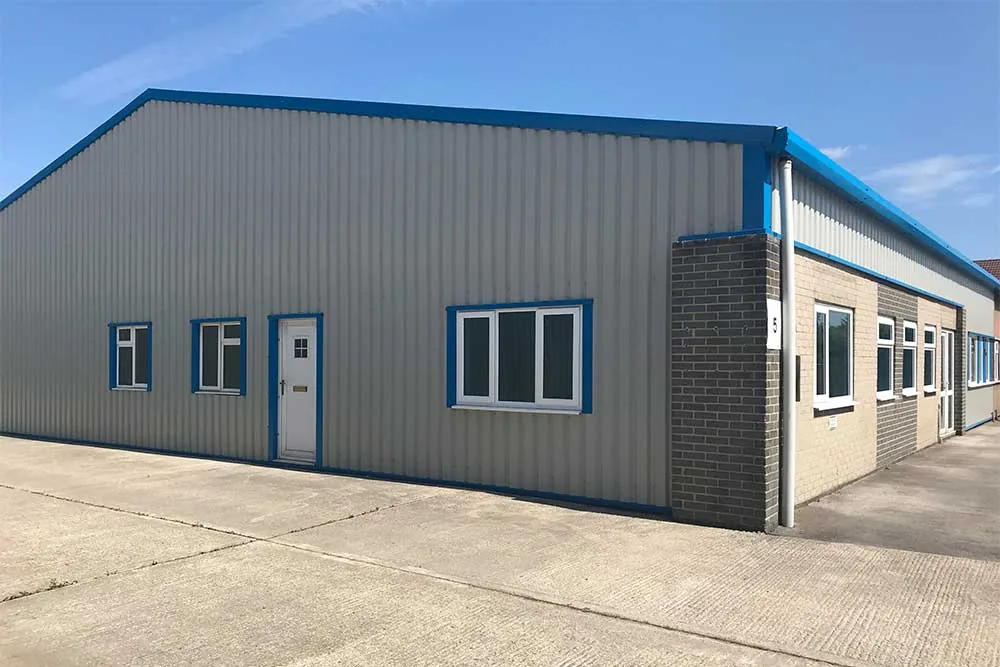

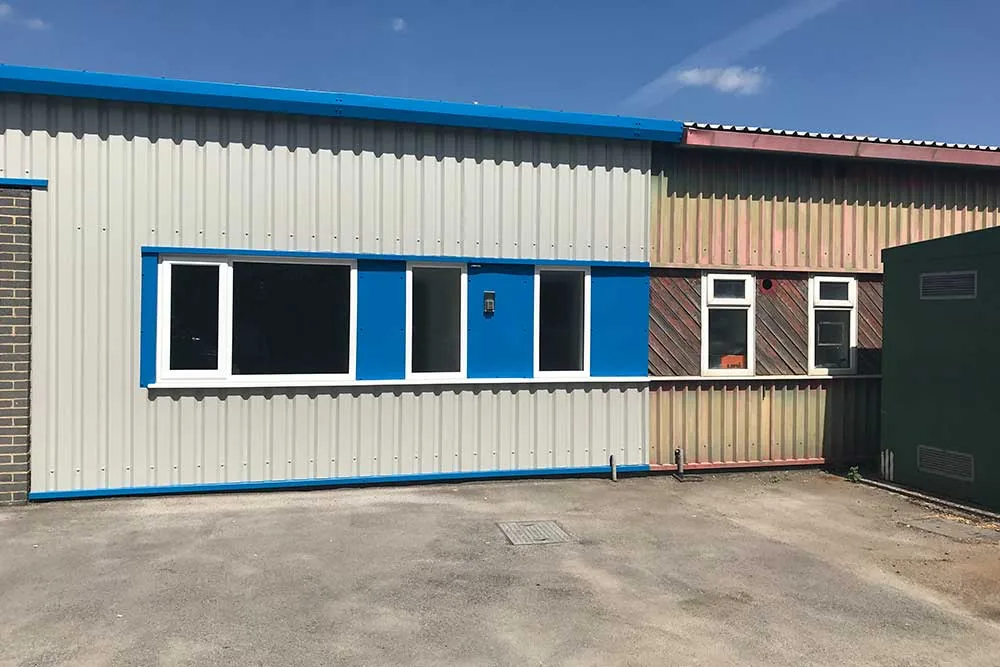

3Completed
