External Envelope
Suzuki Dealership Overcladding, Hunslet, Leeds
A brick extension overclad in anthracite to match the main dealership, turning an obvious afterthought into part of the building.
- Location
- Hunslet, Leeds
- Sector
- Retail & Leisure
- Completed
- March 2021
The brief.
Delivered asOvercladding, Electrical
The client had a brick-built extension that read as exactly what it was: an addition, in a different material, attached to the side of a modern dealership. The brief was to make it look like it belonged there.
Z bars were fixed to the face of the existing brickwork and framed out around the structural openings, then single-skin corrugated-profile powder-coated cladding in RAL 7016 Anthracite was installed across the brick elevations. The cladding finishes approximately 150mm off the ground with a formed drip tray, and new pre-finished powder-coated cappings bridge the newly formed cavity and sit over the existing concrete coping to the flat roof.
We carried out the electrical facilitation works the cladding required at the same time, and upgraded the external security lighting to LED with the certification to go with it. A scissor lift was used throughout for safe and efficient access.
Scope of works.
Every trade below was delivered by us or by a company in the group, under one contract and one point of contact.
- 01 Z bars fixed to the face of the existing brickwork
- 02 Framing out around existing structural openings
- 03 Single-skin corrugated cladding in RAL 7016 Anthracite
- 04 Cladding finished 150mm off ground with formed drip tray
- 05 Pre-finished powder-coated cappings over existing concrete coping
- 06 Electrical facilitation works to enable the cladding
- 07 External security lighting upgraded to LED with certification
- 08 Scissor lift access throughout for safe working
The difference.
Same building, same angle. Click any photograph to open it full size.

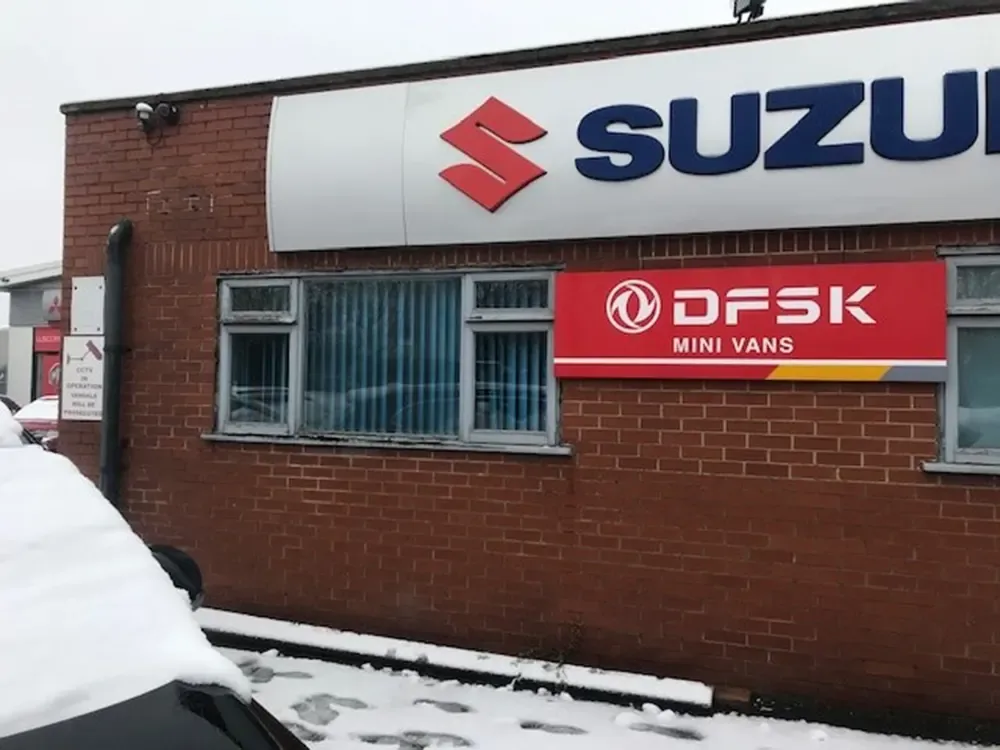

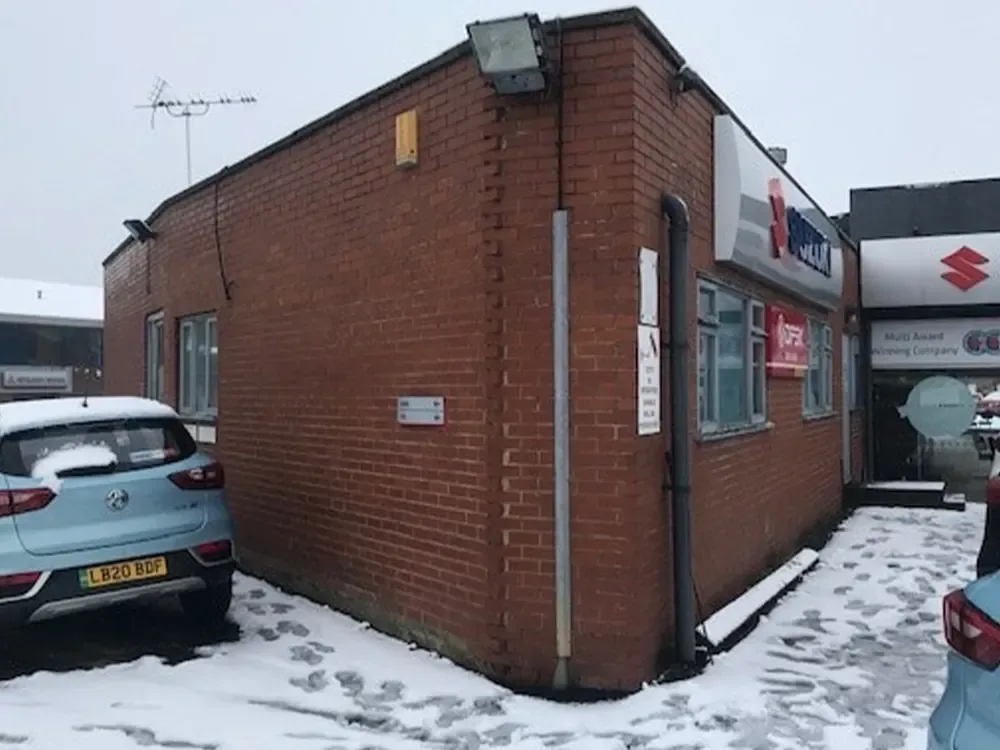

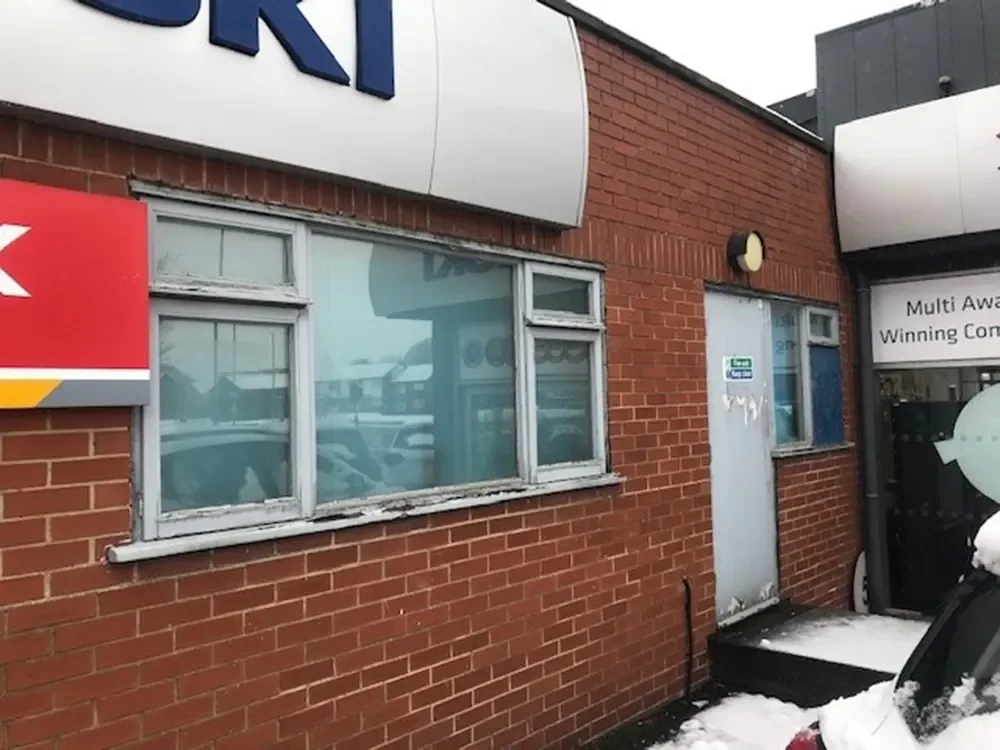

Before

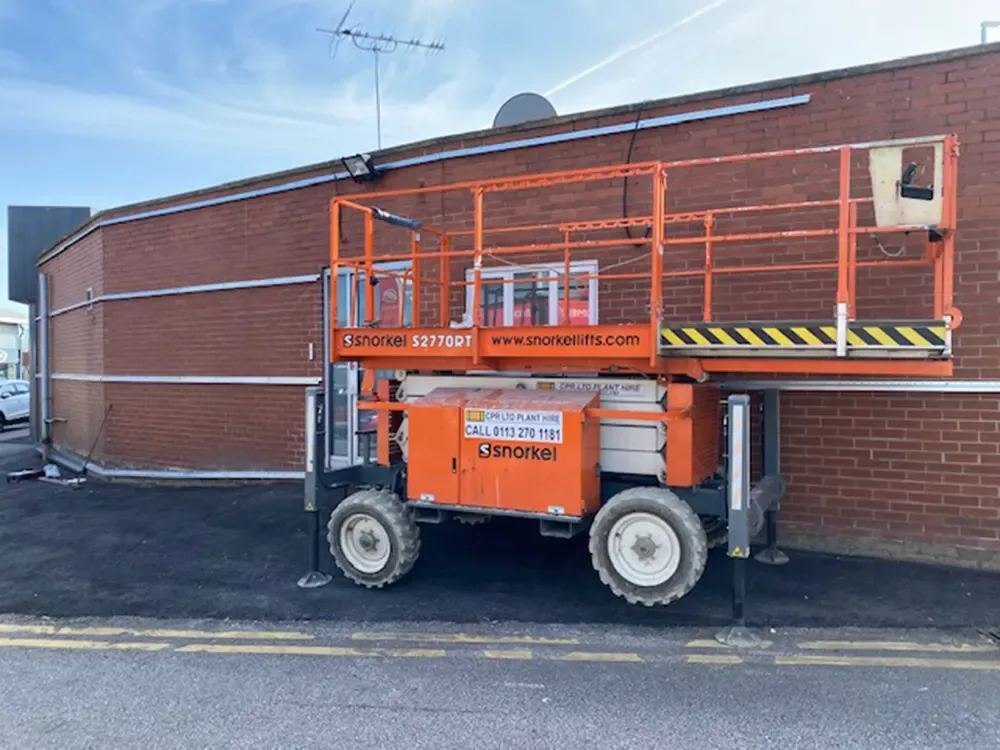

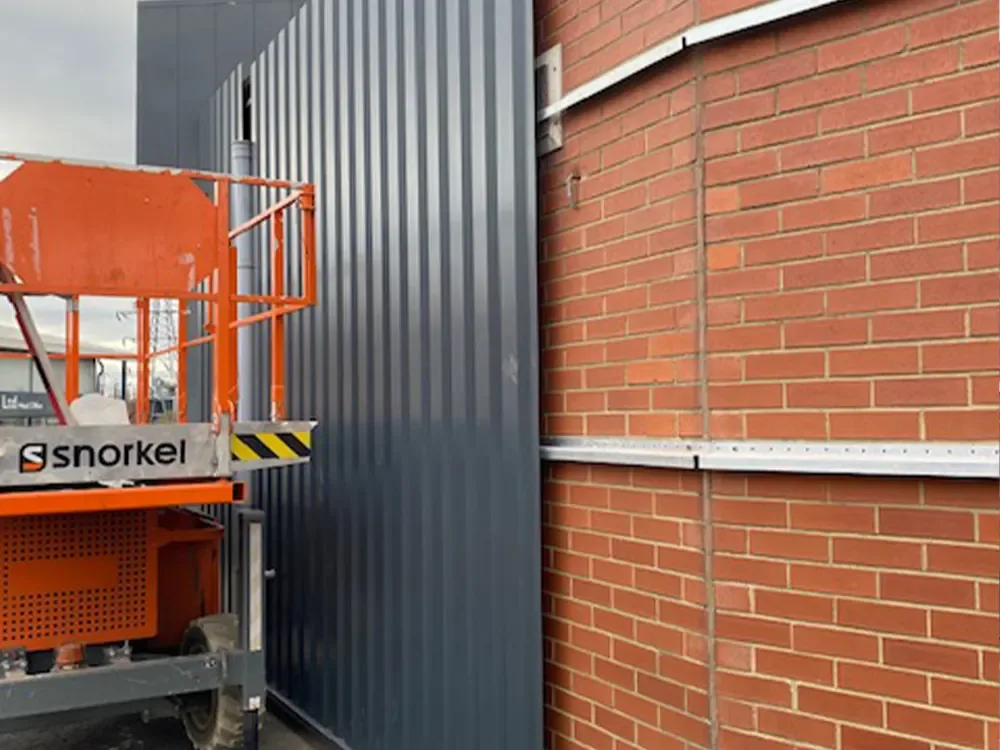

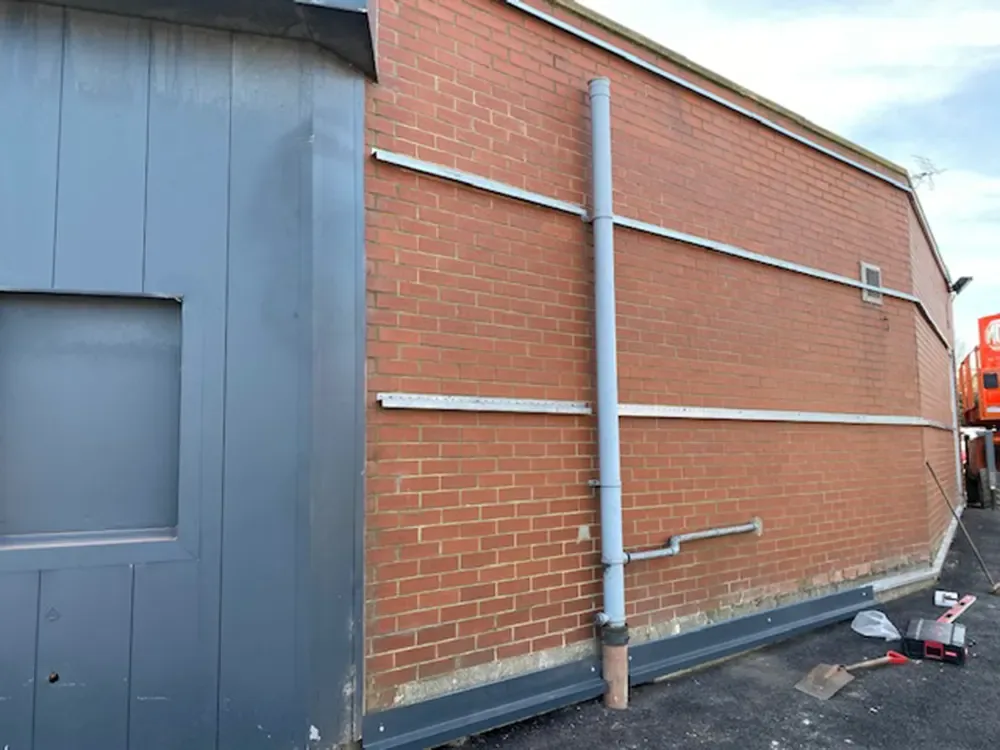

2In progress

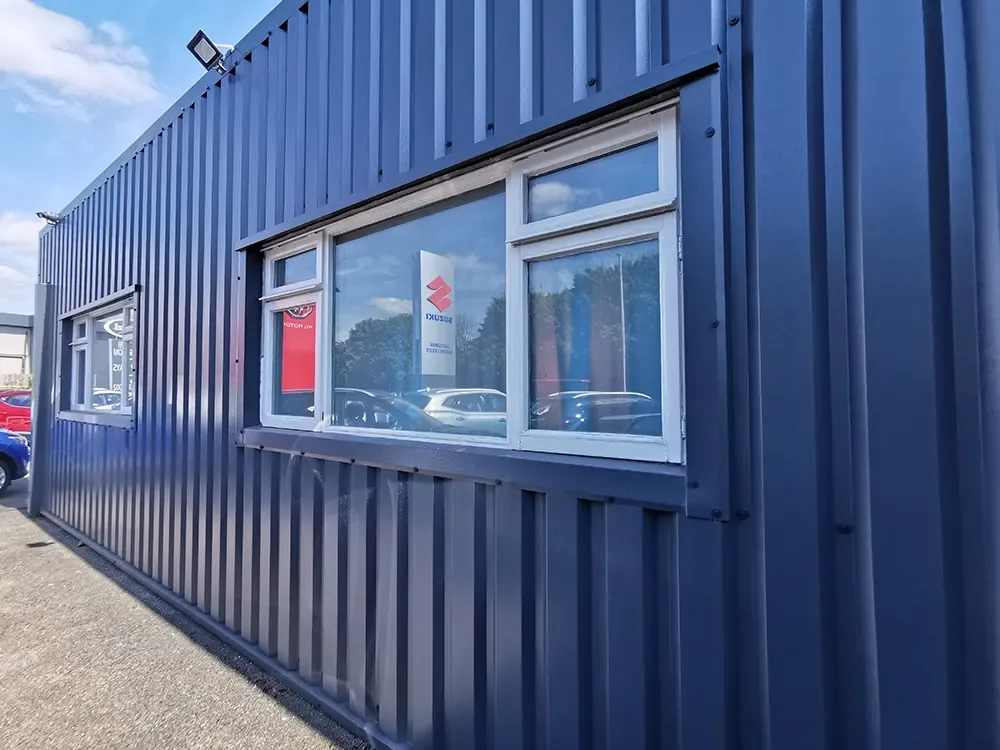

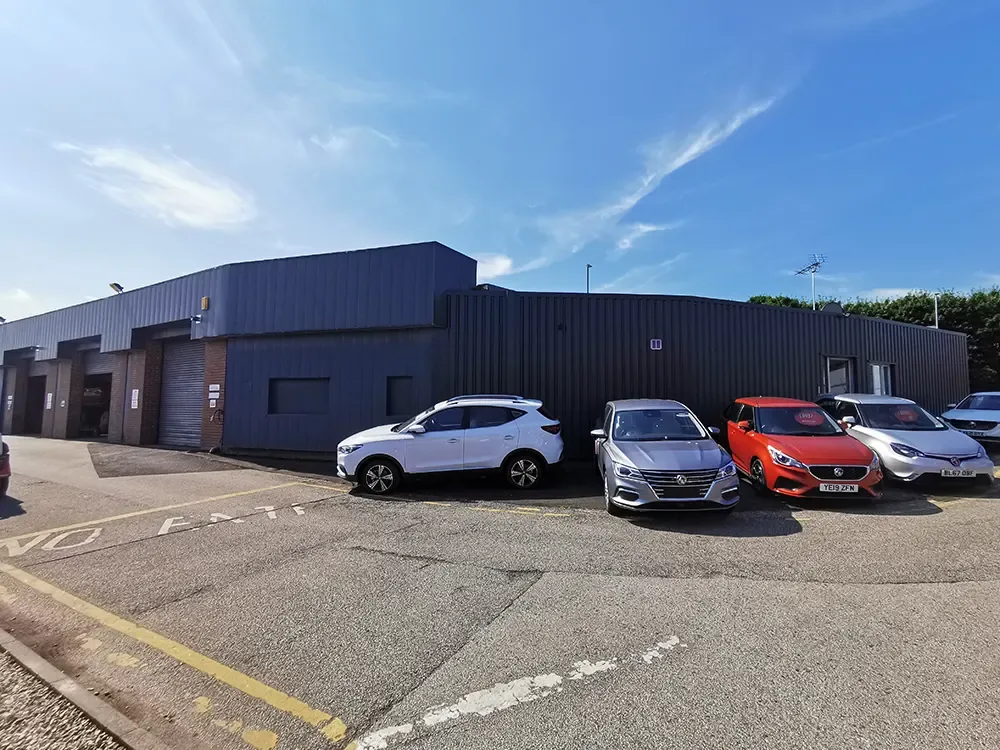

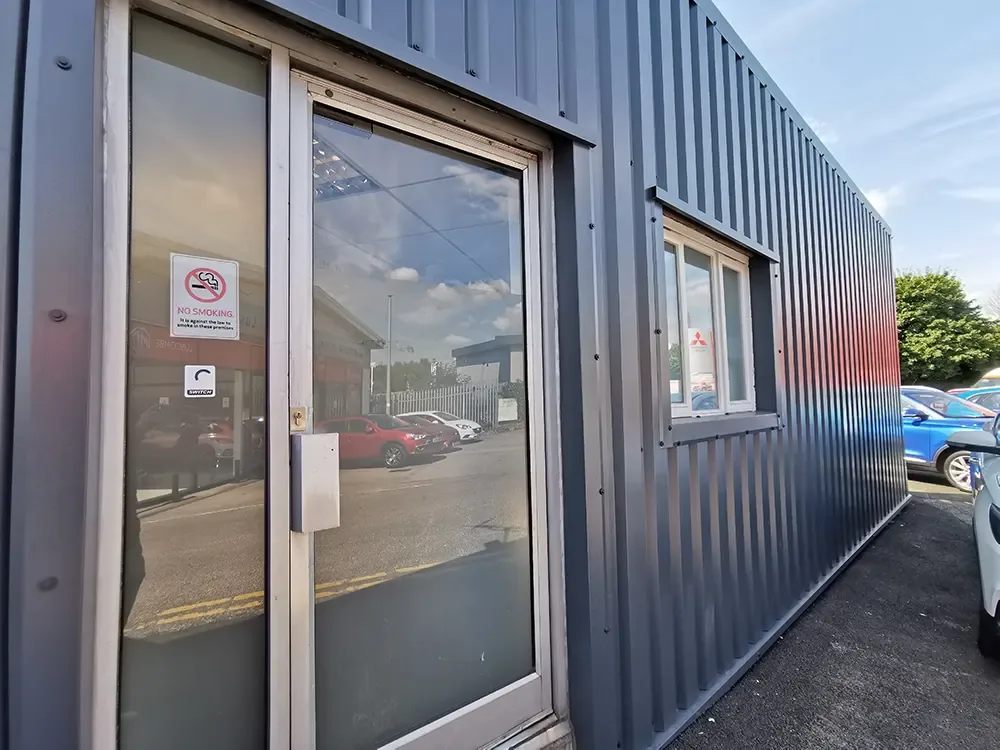

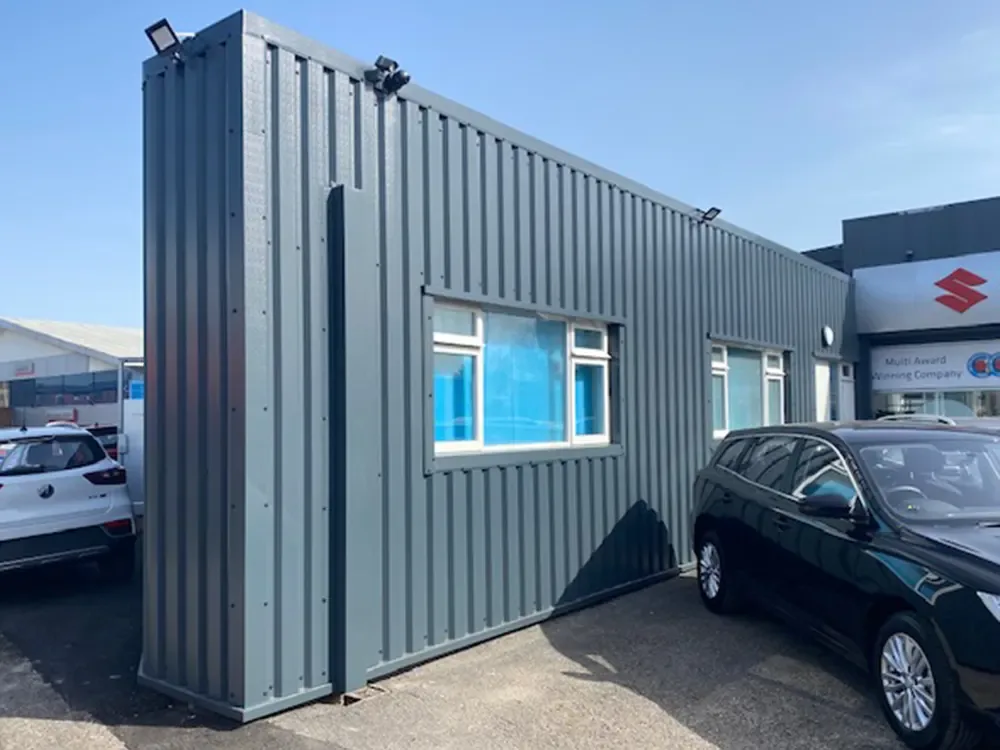

3Completed
